Jeongan Steel is a company specialized in processing and distribution always prepared to supply cold-rolled product made of high-quality rolled steel needed for automobile, electronics, home appliances, farm implement, industrial machine and building material. We are always prepared to supply order items to the customer at right place and time using up-to-date facilities and thorough production management.

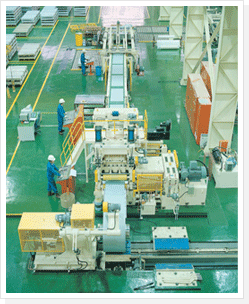

1. 6HI LEVELLER and LIGHT LEVELLER makes easy to control product flatness to the thickness of 0.25 ~ 3.2 and surface controls
2. Device to attach surface protective FILM is installed to attach product surface protective TAPE
3. Cpc System is installed to easily control product dimension
4. Non-Stop Running Rotary Type reduces work time from material input to product shipping |
 |
|
| Automobile, electronics, building material, business and office machine, agricultural machine and various industrial machine manufacturers |
|
|
| GENEAL SPECIFICATIONS |
| ITEM |
SPECIFICATIONS |
| Material |
CR, EGI, PO, GI, GA, COLOR, SUS, AL |
| Thickness |
0.25t ~ 2.3t |
| Width |
200§®~800§® |
| Weight |
25,000§¸ |
| Length |
200§® ~ 4,000§® |
| Line Speed |
80 m/min (200 Cuts/min) |
| Capacity |
25,000TON / YEAR (10HR/DAY) |
| Speciality |
- 6 HI LEVELLER WITH PINCH ROTARY TYPE
- NON-STOP RUNNING ROTATY TYPE
- VINYL SHEET COATER |
|
|
|
|
Jeongan Steel is a company specialized in processing and distribution always prepared to supply cold-rolled product made of high-quality rolled steel needed for automobile, electronics, home appliances, farm implement, industrial machine and building material. We are always prepared to supply order items to the customer at right place and time using up-to-date facilities and thorough production management.
1. 6HI LEVELLER and LIGHT LEVELLER makes easy to control product flatness to the thickness of 0.25 ~ 3.2 and surface controls
2. Device to attach surface protective FILM is installed to attach product surface protective TAPE
3. Cpc System is installed to easily control product dimension
4. Non-Stop Running Rotary Type reduces work time from material input to product shipping |
|
|
| Automobile, electronics, building material, business and office machine, agricultural machine and various industrial machine manufacturers |
|
|
| GENEAL SPECIFICATIONS |
| ITEM |
SPECIFICATIONS |
| Material |
CR, COLOR, SUS, AL |
| Thickness |
0.3t ~ 1.6t |
| Width |
200§® ~ 650§® |
| Weight |
5,000§¸ |
| Length |
200§® ~ 2,000§® |
| Line Speed |
80 m/min (200 Cuts/min) |
| Capacity |
15,000TON / YEAR (10HR/DAY) |
| Speciality |
- 6 HI LEVELLER WITH PINCH ROLLER
- NON-STOP RUNNING ROTATY TYPE |
|
|
|
|
